Shapemaker lets you run civil engineering analysis in minutes, and tower capacities are available instantly. From reviewing specs to sign-off you save weeks of work.
We have turned complex civil engineering analysis into an easy to use software. We enable our customers to take charge and become independent in controlling their portfolio.
Shapemaker reduces carbon footprint and raw material consumption. The solution enables the flexibility for last minute changes and standardization of tower families. That means better results, lower costs and scalability.
.jpg)
Review spec
Go through spec/order including tower types, antennas etc.
Site-specific assessment
Assess wind speed, topography, exposure, seismic etc.
Tower geometry
Optimise the geometry of the tower (incl. bracing pattern, member types, etc.)
Wind loading
Asses tower specific wind pressure (drag factor, solidity etc.)
FEA Analysis
Check how the tower react to real life forces.
Design code (Euro code, TIA etc.)
Check if the tower geometry and FEA modeling is according to governing standards.
Reporting
Compile information into a report.
Sign-off
Sign off by country specific certified structural engineer (incl. checklist, control, calculation etc.)
Insert inputs
Insert geometry, loading and location.
Shapemaker takes care of step 2-7 automagically.
Easy sign-off
Reports are already made at an academic level
We assure engineering compliance and optimize telecommunication structures to enable our customers’ long term strategy.
Learn moreWind parameter assessment based on wind maps and wind data from weather stations.

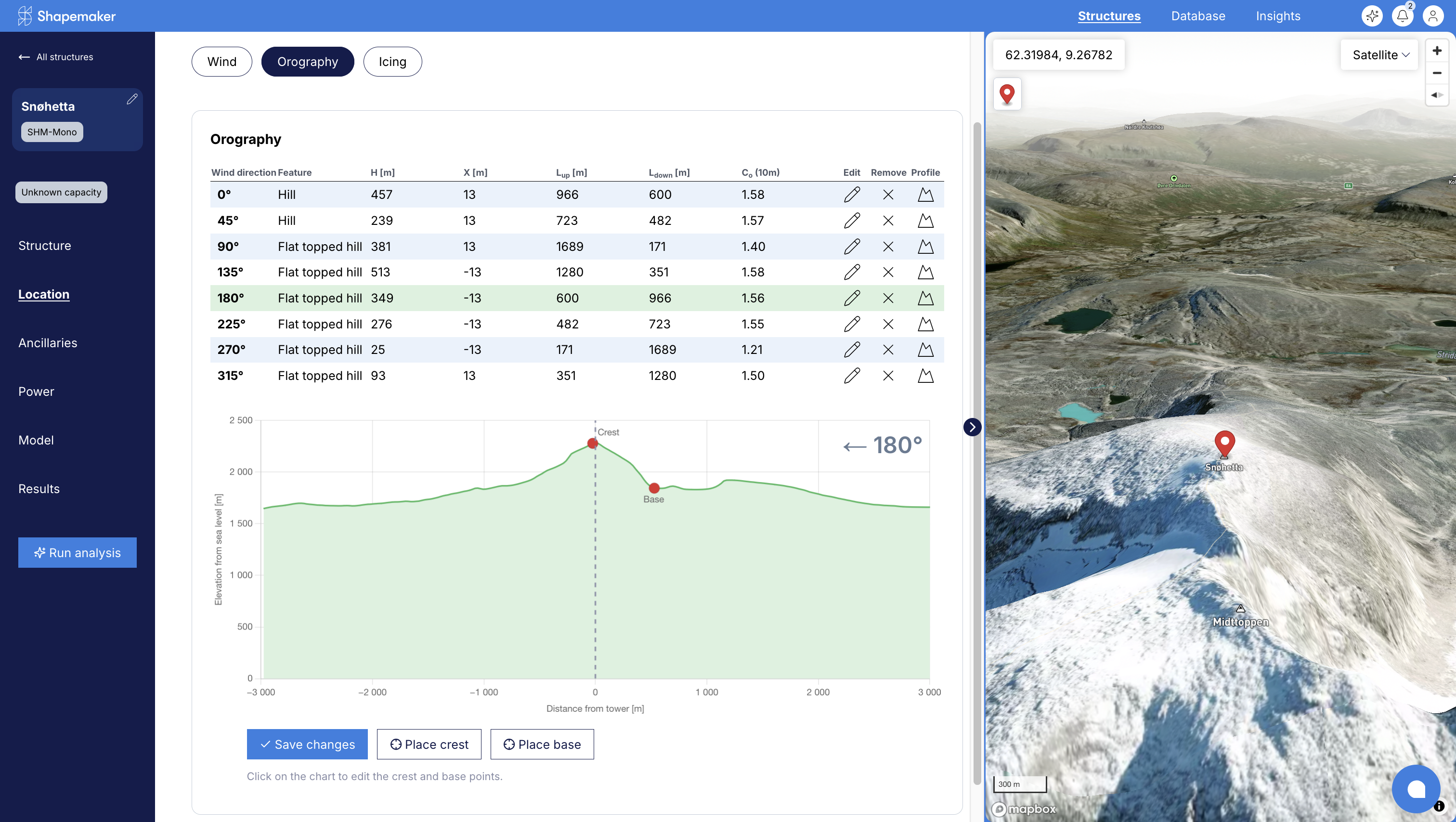

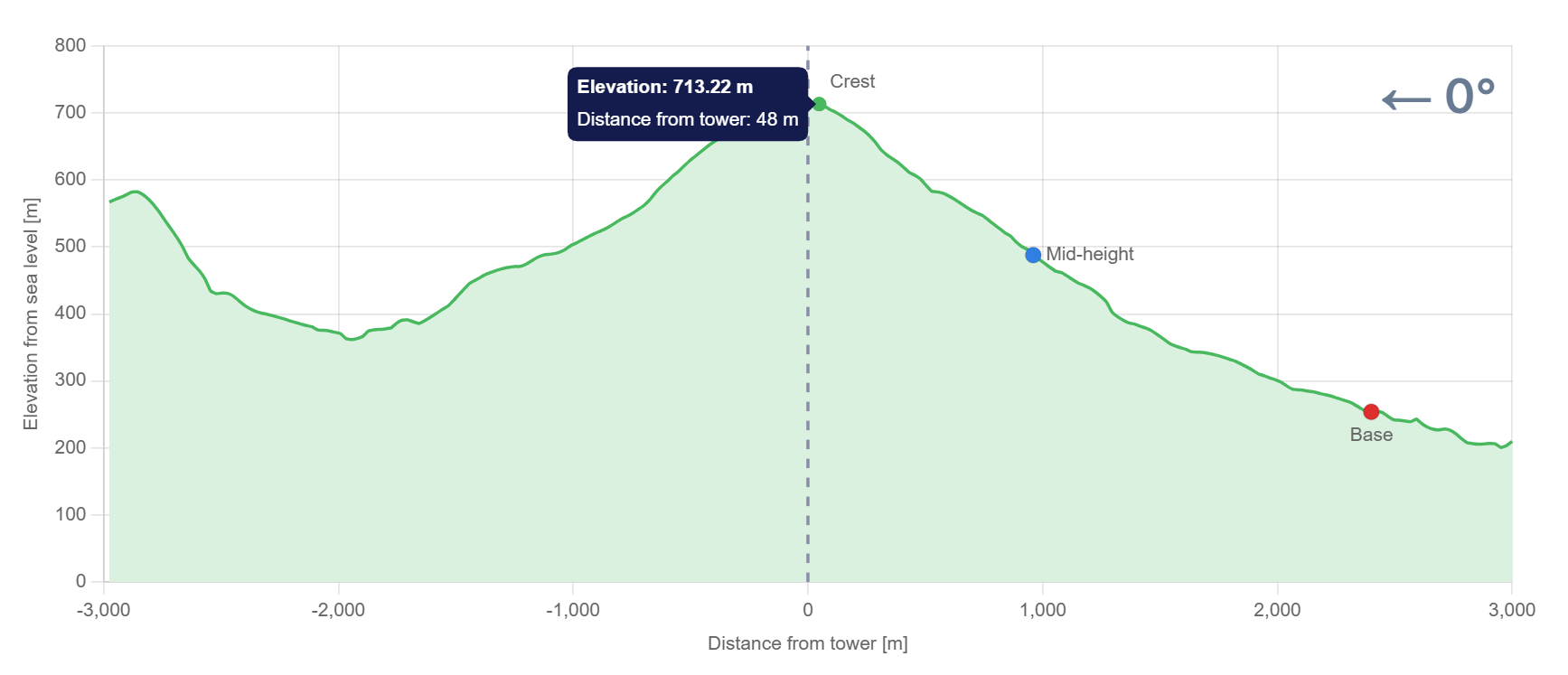

Location-specific assessment of topographic exposure even in challenging conditions.
Automatic assessment of terrain based on satellite imaging data with precise resolution.
